Manufacturer Italy, Ariston
Fuel type gas
Installation type wall
Combustion chamber type Closed combustion chamber
Power, kW 25.8
Load capacity, kW 24.2
Approximate heating area, m2 240
Number of contours with two contours
Power modulation range, kW 9.8 - 24.2
Supply voltage, V 220
Consumed electrical power, W 112
Average rate of action, % 93.8
Boiler water temperature, max-min °C 82/35
Boiler hot water circuit temperature, max-min °C 60/36

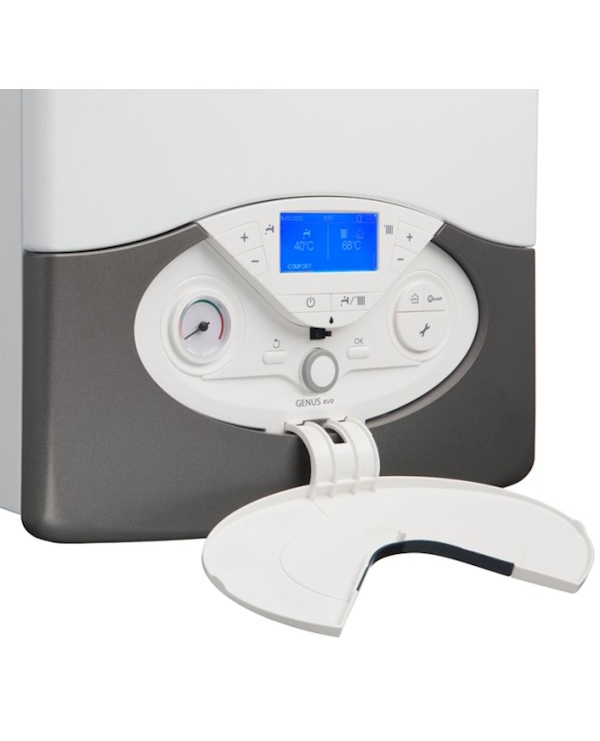

LSD display √
Electronic temperature regulation √
Has a hot water contour √
High-speed heat exchanger √
Amount of hot water, l/min 13.9
Built-in circulation pump √
Expansion tank capacity, l 6.5
Water connection, G " 1/2
Connecting the heating circuit, G " 3/4
Gas connection, G " 3/4
Nominal gas pressure, mbar 20
Gas consumption, m³/h 2.73
Diameter of smoke pipe, mm 60/100
Dimensions, mm (height x width x depth) 770x400x315
Weight, kg 30
